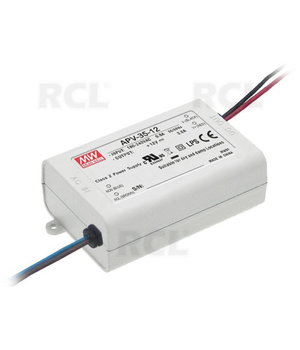

MAITINIMO ŠALTINIS LED 12V 3A 36W, APV-35-12, IP42, Mean Well

Kodas AMLED1236
  • Gam. ženkl. MEAN WELL
  • Svoris bruto 195.00g

Eshop kaina: 13,50 €

Kiekis: 2+ 3+
Kaina: 13,23 13,09
Min. užsakymas: 1 Kartotinumas: 1

Kiekis

Duomenų lapas

Prekės buvimo vietos:
Centrinis sandėlis Kaune Prekę turime (3)
Parduotuvė Vilniuje Nr. 1 Prekę turime (3)
Parduotuvė Kaune Nr. 1 Prekę turime (3)

Prekės aprašymas

constant voltage mode power supply
universal AC input / full range
resists 300 VAC surge input for 5 seconds
protections: short circuit / overload / over voltage
cooling by free air convection
compact size
fully isolated plastic case
IP30 design
pass LPS
suitable for LED lighting and moving sign applications
low cost, high reliability
100% full load burn-in test
for professional use only

Specifications
output:
DC voltage: 12 V
rated current: 3 A
current range: 0-3 A
rated power: 36 W
ripple & noise (max): 150 mVp-p
voltage tolerance: +/- 5.0%
line regulation: +/- 1.0%
load regulation: +/- 2.0%
setup, rise time: 1500 ms, 40 ms / 230 VAC 1500 ms, 40 ms / 115 VAC at full load
hold-up time (typ.): 20 ms / 230 VAC 12 ms / 115 VAC at full load
input:
voltage range: 90-264 VAC 127-370 VDC
frequency range: 47-63 Hz
efficiency (typ.): 83%
AC current (typ.): 0.5 A / 230 VAC 0.75 A / 115 VAC
inrush current (max.): cold start 45 A (twidth = 440 µs measured at 50% lpeak) at 230 VAC
leakage current: 0.25 mA / 240 VAC
protection:
overload:
110-160% rated output power
protection type: hiccup mode, recovers automatically after fault condition is removed
overvoltage:
13.8-16.2 V
protection type: shut down output voltage, re-power on to recover
environment:
working temperature: -30 °C to +70 °C
working humidity: 20 - 90% RH non-condensing
storage temperature, humidity: -40°C ~ +80 °C, 10 ~ 95% RH
temperature coefficient: +/- 0.03 % / °C (0 ~ 50 °C)
vibration: 10 - 500 Hz, 2 G 10 min. / 1 cycle, period for 60 min. each along X, Y, Z axes
safety & EMC:
safety standards: UL8750, CSA-C22.2 No. 250.0-13 approved; design refer to EN60950-1
withstand voltage: input-output: 3000 VAC
solation resistance: input-output: > 100 MOhm; / 500 VDC / 25 °C / 70 % RH
EMC emission: compliance to EN55022, EN61000-3-2 Class A, EN61000-3-3
EMC immunity: compliance to EN55024, EN61000-4-2,3,4,5,6,8,11; light industry level (surge 2KV), criteria A
other:
MTBF: 692.800 hrs min. MIL-HDBK-217F (25°C)
dimensions: 84 x 57 x 29.5 mm
