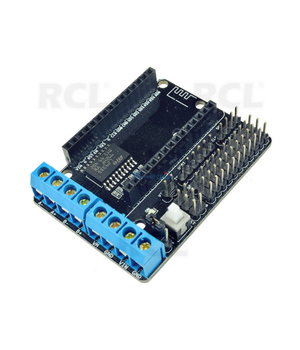

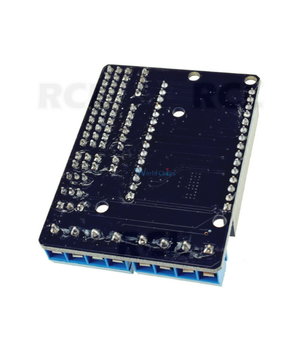

VARIKLIŲ VALDIKLIS su WIFI ESP8266 L293D ESP12E Lua Things Smart Car

Kodas ABRDV03
  • Svoris bruto 23.00g

Eshop kaina: 4,80 €
5,90 €

Kiekis: 4+ 8+
Kaina: 4,56 4,42
5,55 5,49
Min. užsakymas: 1 Kartotinumas: 1

Kiekis

Prekės buvimo vietos:
Centrinis sandėlis Kaune Prekę turime (2)
Parduotuvė Vilniuje Nr. 1 Prekę turime (2)
Parduotuvė Kaune Nr. 1 Prekę turime (1)

Prekės aprašymas

Power input:
Motor power supply (VM): 4.5V ~ 36V, can be powered separately
Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately
Module provides short-circuit sub (short the VM and VIN), you can easily use one power (must 4.5V ~ 9V) while completing motor drive and control
Logic Operating current Iss: ?60mA (Vi = L), ?22mA (Vi = H)
Drive part of the work current Io: ?1.2A
Maximum power dissipation: 4W (T = 90 ?„?)
Control signal input level: High: 2.3V?VIH?VIN; Low: -0.3V?VIL?1.5V
Working temperature: -25 ?„? ~ + 125 ?„?
Drive Type: Dual high-power H-bridge driver
ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
Expand two-way motor-driven, two-way direct drive motor
Onboard power switch
Motor power, control power separation; In the experiment, by short-circuiting block the merger,
the VIN and VM short, while power to the motor and the control board

Notice:

When inserted into the ESP-12E module,
please note the direction consistent with an expansion board antenna
The use of short modules that can simultaneously control board and motor.
