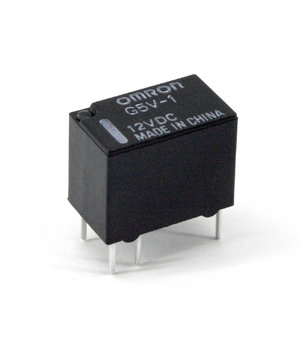

RELAY G5V1-12 12V 150mW , 1A / 24V DC 0.5A / 125V AC, (SPDT), OMRON
Code RLG5V112- Manufacturer OMRON
- ID code G5V-1 12VDC
- Weight 2.40g
E-shop price:
1,90 €
2,90 €
| Amount: | 5+ | 10+ | 25+ |
| Price: | 1,73 | 1,50 | 1,48 |
| 2,58 | 1,90 | 1,77 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (25) | |
| Shop in Vilnius | Item available (8) | |
| Shop in Kaunas | Item available (6) | |
Item description
Switched voltage: max. 60V DC, max. 125V AC
Mounting: PCB
Coil resistance: 960Ω
Coil power consumption: 150mW
Coil current: 12.5mA
Operating temperature: -30...70°C
Contact resistance: 100mΩ
Terminal pitch: 2.54mm

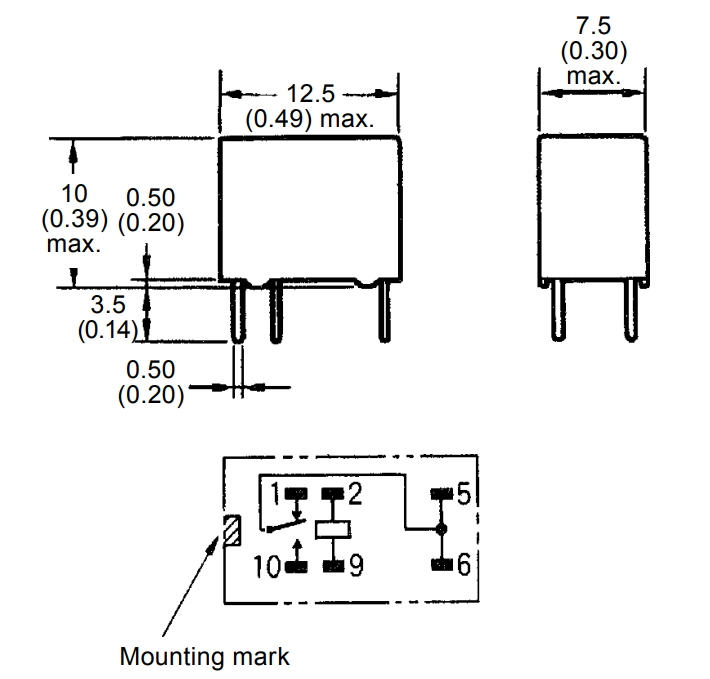

Body dimensions: 12.5x7.5x10mm
