WOOFER W200 4Ω
Code GAVSZW200- Manufacturer VISATON
- ID code 9064
- Weight 1177.00g
E-shop price: 44,90 €
| Amount: | 3+ | 5+ |
| Price: | 42,65 | 41,31 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item available (2) | |
| Shop in Kaunas | Item available (2) | |
Item description

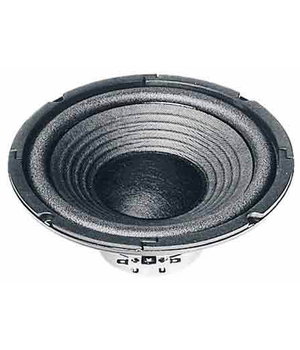

20 cm (8") woofer with very good price/performance ratio. Suitable for simple 2-way speakers and car rear tray systems. Especially suited as replacement driver for many HiFi speakers.
Technical Data:
Rated power 50 W
Opening angle (-6 dB) 49°/4000 Hz
Excursion limit +/-10 mm
Resonance frequency fs 45 Hz
Magnetic induction 1.0 T
Magnetic flux 400 µWb
Height of front pole-plate 5 mm
Voice coil diameter 25 mm
Height of winding 9 mm

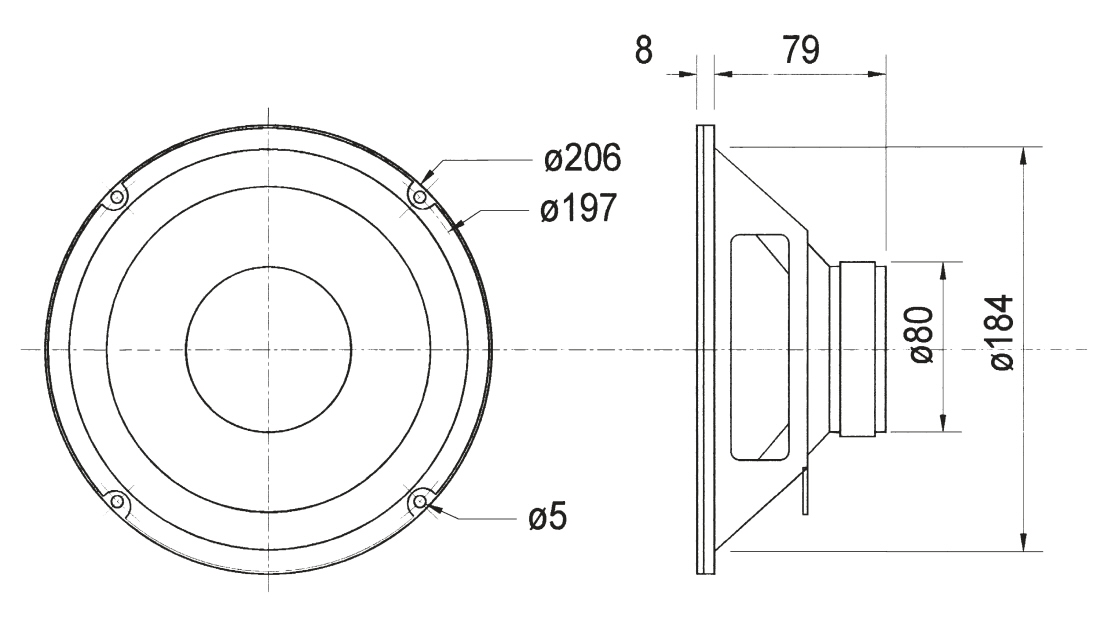

Cutout diameter 185 mm
D.C. resistance Rdc 3.2 Ohm
Mechanical Q factor Qms 3.46
Electrical Q factor Qes 0.77
Total Q factor Qts 0.63
Equivalent volume Vas 54
Effective piston area Sd 207 cm²
Dynamically moved mass Mms 14 g
Force factor Bxl 4.2 Tm
Inductance of the voice coil L 0.5 mH
