PUSH BUTTON SWITCH OFF-(ON) 1.5A / 250VAC, with LED, green, round
Code CPR158Z- Manufacturer SCI
- ID code R13-523AL-05-BG-L-1
- Weight 3.30g
E-shop price: 2,90 €
| Amount: | 5+ | 10+ |
| Price: | 2,58 | 2,32 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (23) | |
| Shop in Vilnius | Item available (6) | |
| Shop in Kaunas | Item available (21) | |
Item description
Contacts configuration SPST-NO
Actuator colour grenn
Backlight colour green
Illumination LED 12V DC
Leads for soldering
Switching method OFF-(ON)
Operating temperature -25...70°C
Mounting hole diameter Ø16mm
Mounting on panel
Max. contact resistance: 50mOm
Panel thickness max 3mm

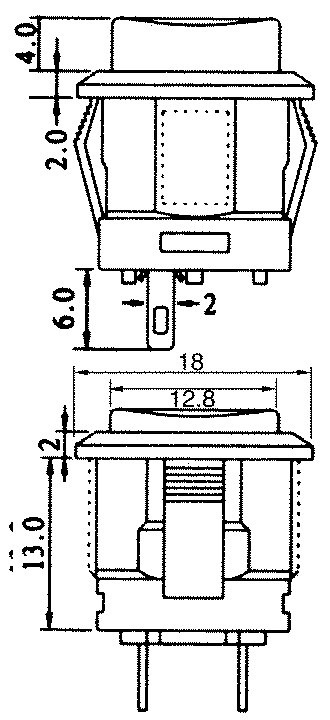

Body dimensions Ø18 x 13mm
Flammability rating UL94V-2
Terminals plating silver plated
AC test voltage 1.5kV
