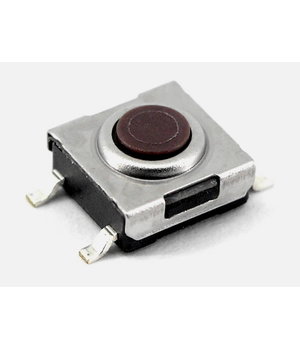

MICROSWITCH SMD ON square , 6.3x6.3mm, H=3.3mm
Code CPR027S- Weight 0.50g
E-shop price: 0,30 €
| Amount: | 10+ | 25+ | 50+ | 100+ |
| Price: | 0,2640 | 0,2505 | 0,2330 | 0,1993 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (75) | |
| Shop in Vilnius | Item available (8) | |
| Shop in Kaunas | Item available (13) | |
Item description
-Step: 0.25 mm
-Contact resistance: 100mΩ Max.
-Insulation resistance: 100MΩ min. at 500VDC
-Dielectric resistance: 250VAC for 1 minute
-Operating force: 160±50gf
-Operating temperature: -25°C to +70°C
-Storage temperature: -30°C to +80°C
-Security class: IP67
-Electrical life: 100,000 cycles min.
Applications
-Audio
-OA equipment
-Instruments
-Communications
-White goods
