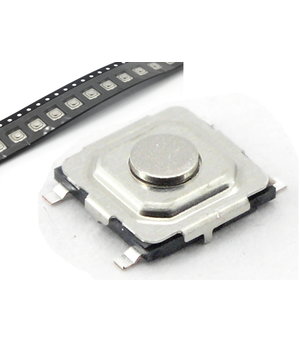

MICROSWITCH OFF-(ON) SMD, 50mA / 12VDC, square 5.2x5.2x1.49mm
Code CPR026S- Weight 0.50g
E-shop price: 0,30 €
| Amount: | 10+ | 25+ | 50+ | 100+ |
| Price: | 0,2640 | 0,2397 | 0,2230 | 0,1906 |
Minimum order: 1 Repeatability : 1
Amount
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item available (111) | |
| Shop in Vilnius | Item available (70) | |
| Shop in Kaunas | Item available (43) | |
Item description
·Contact resistance: 100mΩ Max.
·Insulation resistance: 100MΩ Min. at 500VDC
·Dielectric strength: 250VAC for 1 minute
·Operation force: 160±50gf
·Stroke: 0.25 +0.1/- 0.2mm
·Operating temperature: -25°C to +70°C
·Electrical life: 1,000,000 cycles Min.
**Materials
·Metal stem: Brass, nickel plated
·Cover: Nickel silver
·Adhesive tape: Teflon
·Terminal: Brass, silver plated
·Contact: Stainless steel with silver cladding
·Base: High-Temp thermoplastic LCP molded black
