POWER SUPPLY LED 12V 2.1A 25.2W, APV-25-12 Mean Well

Code AMLED1220
  • Manufacturer MEAN WELL
  • Weight 150.00g

E-shop price: 12,30 €

Amount: 2+ 3+
Price: 11,96 11,81
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (6)
Shop in Vilnius Item available (4)
Shop in Kaunas Item available (3)

Datasheet


Item description

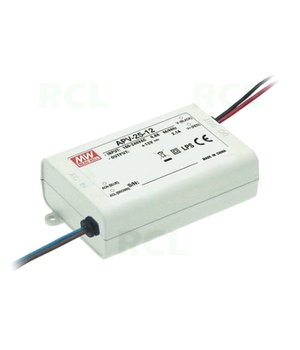

Mean Well APV-25 Series Constant Voltage 25W
The Mean Well APV-25 series, 25W IP30 rated, LED Single output, switching Power Supply.
With a universal AC input, short circuit, overload, over voltage protections, withstand 300VAC surge input for 5 seconds.
The APV-25 feature an up to date frequency switching topology with 90-264VAC input range and up to 84% of high efficiency,
the Mean Well APV-25 Power Supply can work between -30 +70C only by using free air convection.
The APV-25 series is recommended for use with indoor LED lighting without the need of high level waterproof and dustproof ability

Universal AC input
Constant voltage mode power supply
Withstand 300VAC Surge input for 5 seconds
Fully isolated Plastic case with 94V-0 fire prevention level
Small and compact size
IP30 design
Pass LPS
Suitable for LED lighting and moving sign applications
84% high efficiency
Cooling by free air convection
Isolation class II, no FG
Class 2 power unit
Protections: Short circuit / Overload / Over voltage
Low cost, high reliability
100% full load burn-in test

Input Voltage 90...264 VAC
Output Voltage 12V
Operation Constant Voltage
Output Current 2.1A
Maximum Output Power 25.2W
IP Rating IP30
Number of Outputs 1
Voltage Rating 90 - 264 VAC, 127 - 370 VDC

Specification
