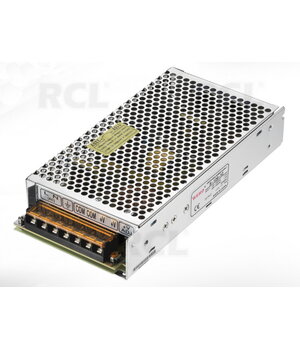

POWER SUPPLY 12V 10A 120W, 199x98x38mm
Code AMJ12012- Weight 450.00g
E-shop price: 14,90 €
| Amount: | 5+ | 10+ |
| Price: | 12,72 | 11,93 |
| Item location: | ||
|---|---|---|
| Central warehouse in Kaunas | Item is not available (0) | |
| Shop in Vilnius | Item is not available (0) | |
| Shop in Kaunas | Item available (1) | |
Item description
Output voltage tolerance ±1%
Ripple and noise 100mVp-p
Inlet stability ±0.5%
Load stability ±0.5%
Efficiency 84%
Output voltage adjustment range ±10%
AC input voltage range 85~132VAC/170~265VAC/47~63VAC,120~370VDC
Input current 0.35A/230V
AC impulse current Cold-start current 15A/115V 30A/230V
Leakage current <0.75mA/240VAC
Overload protection 105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery
Over-voltage protection 115%~135% rated output power
Temperature coefficient ±0.03%°C(0~50°C)
Setup rise hold up time 80ms/230VAC
Withstand voltage I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance I/P-O/P I/P-FG O/P-FG:500VDC/100M?
Working temperature and humidity -10°C~+60°C,20~90%RH
Store temperature and humidity -20°C~+85°C,10~95%RH
Overall dimension 1999838mm
