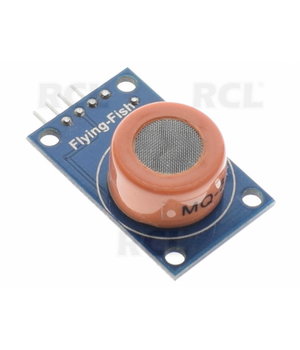

ALKOHOLIO ETANOLIO jutiklio modulis MQ-3, tinka Arduino

Kodas CJJ0038
  • Svoris bruto 6.00g

Eshop kaina: 2,90 €
3,70 €

Kiekis: 4+ 8+
Kaina: 2,76 2,73
3,48 3,44
Min. užsakymas: 1 Kartotinumas: 1

Kiekis

Prekės buvimo vietos:
Centrinis sandėlis Kaune Prekę turime (7)
Parduotuvė Vilniuje Nr. 1 Prekę turime (3)
Parduotuvė Kaune Nr. 1 Prekę turime (2)

Prekės aprašymas

Sensitive material MQ-3 gas sensor is used in clean air low conductivity tin oxide (SnO2). When there is alcohol vapor in the environment sensor, conductivity sensor with increasing gas concentration of alcohol in the air increases. Use simple circuit can convert the change in conductivity of the gas concentration corresponding to the output signal. High MQ-3 gas sensor sensitivity to alcohol, can resist the interference of gasoline, smoke, water vapor. The sensor can detect a variety of alcohol concentration in the atmosphere, is a low-cost sensor suitable for a variety of applications
Application:
For on-site detection of motor vehicle drivers and other non-drinking workers, but also for detecting other places of ethanol vapor, alcohol detection range: detection range 10 ~ 1000ppm.
Features:

Using high-quality dual-panel design,with power indicator and TTL signal output instructions.
The switching signal having a DO (TTL) output and analog output AO.
TTL output valid signal is low. ( Low-level signal when the output light can be directly connected to the microcontroller or relay module )
Analog output voltage with the higher concentration of higher voltage
There are four screw holes for easy positioning.
Has a long life and reliable stability
Rapid response and recovery characteristic
Input voltage : DC5V Power consumption ( current ): 150mA
DO output : TTL digital 0 and 1 ( 0.1 and 5V)
AO output :0.1-0 .3 V ( relative to pollution ) , the maximum concentration of a voltage of about 4V
Special note: After the sensor is powered,needs to warm up around 20S,measured data was stable,heat sensor is a normal phenomenon,because the internal heating wire,if hot is not normal .

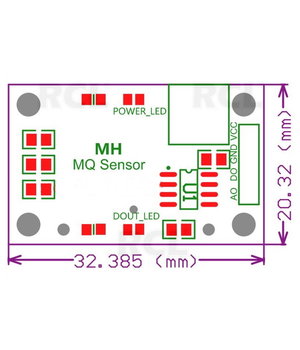

Wiring:
VCC: positive power supply (5V)
GND: power supply is negative
DO: TTL switching signal output
AO: analog signal output

NOTE:

After the sensor is powered, need to warm about 20S, measured data becomes stable, heat sensor is normal
