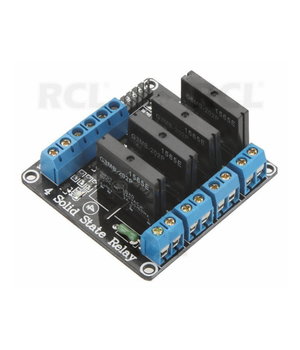

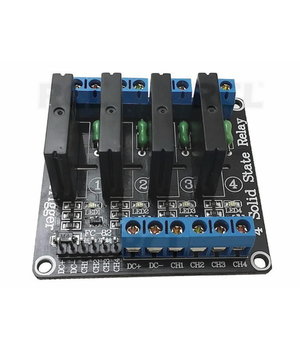

4 channel solid relay module for Arduino

Code RLMD03S
  • Weight 42.00g

E-shop price: 9,90

Amount: 3+ 6+
Price: 9,21 8,72
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item is not available (0)
Shop in Vilnius Item available (1)
Shop in Kaunas Item available (1)

Item description

5V Omron solid state relays 240V / 2A, output with resistive fuse 240V / 2A.
Dimensions: 57x55x25 (length x width x height)
Input Power: 5VDC
Control signal input voltage: (0-2.5V low state relay ON) (3-5V state high relay OFF)

Feature:

Voltage:5V
Quiescent current: 0 mA
Operating current: 12.5mA
Trigger Voltage: 3.3-5V
Trigger current: 2mA
DC +: positive power supply (according to the relay voltage supply)
DC-: negative power supply

CH1: relay module signal triggering end (high to trigger active)
CH2: relay module signal triggering end (high to trigger active)
CH3: relay module signal triggering end (high to trigger active)
CH4: relay module signal triggering end (high to trigger active)
