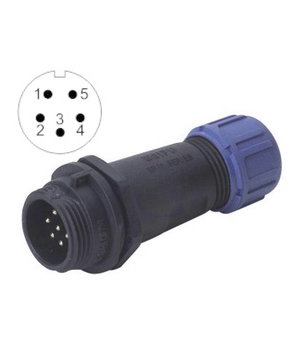

Plug for cable, male, SP1311, pin5, IP68, 4÷6.5mm, 5A, soldering

Code CJP/W1311/K5
  • Manufacturer WEIPU
  • ID code SP1311/P5
  • Weight 8.00g

E-shop price: 4,70

Amount: 4+ 8+
Price: 4,28 4,18
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (2)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (1)

Item description

Drawing Datasheet

Type of connector circular
Connector plug
Kind of connector male
Connector series SP13
Number of pins 5
IP rating IP68
Cable external diameter 4...6.5mm
Current rating 5A
Electrical mounting soldering
Type of connector circular
Connector plug
Kind of connector male
Connector series SP13
Number of pins 5
IP rating IP68
Cable external diameter 4...6.5mm
Current rating 13A
Electrical mounting soldering
Mechanical mounting for cable
Rated voltage 250V
Wire cross section 2mm2
Locking system threaded joint, internal thread
Operating temperatuhttps: -40...85°C

Specification
