Battery charge control module XY-L30A

Code ABRM34
  • Manufacturer Unspecified
  • ID code XY-L30A
  • Weight 63.00g

E-shop price: 12,90

Amount: 4+ 8+
Price: 11,74 10,25
Minimum order: 1 Repeatability : 1

Amount
Item location:
Central warehouse in Kaunas Item available (2)
Shop in Vilnius Item available (2)
Shop in Kaunas Item available (1)

Item description

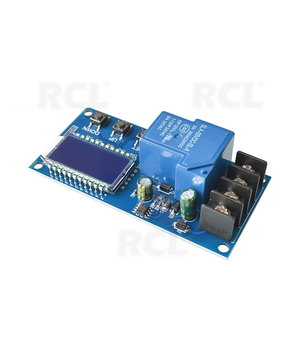

XY-L30A charging module with LCD indication. Automatically manages the charging and discharging of batteries.
Suitable for lead acid batteries or other rechargeable batteries 6 - 48VDC range.

Features:

  • Dimensions: 79 x 45 x 2.2mm.
  • Can recharge lead acid batteries.
  • Charging parameters are displayed on the LCD screen.
  • Control voltage: DC 6V - 60VDC.
  • Control current: 0 - 30A (max.)
  • Control accuracy: 0.1VDC.
  • Output type: direct output.

Features:

  • Charge level indication.
  • Adjustable time interval.
  • Supports UART programming.
  • Automatic battery protection.

Parameter setting:

Press and hold the 'SET' button for 3 seconds.Change the parameter by briefly pressing the 'SET' button.Change the value of a parameter by pressing the 'UP' or 'DOWN' buttons (the duration of the press influences the speed of change).Save changes by pressing the 'SET' button for 3 seconds.Setting automatic charging:

When the upper voltage limit volt-HI: 'UP' and the lower voltage limit volt-LI: 'dn' are set, the relay will switch on
and start charging until the upper voltage limit is reached.

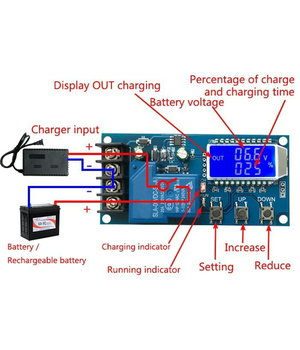

Button functions:

  • 'SET' - briefly presses to display the current settings.
  • 'UP' - briefly press to show the charging percentage and time.
  • 'DOWN' - briefly presses to switch the relay on or off.
  • 'UP' - long press sets the LCD backlight. 'OFF' - always on; 'ON' - automatically switches off after 5 - 10 seconds.
  • 'SET' - pressing for 3 seconds will save changes.
